LOCTITE® is the world’s leading brand for adhesives, sealants and surface treatments. With breakthrough technology, we provide solutions that deliver on our goals providing more efficient adhesives that are durable, strong and long lasting to unlock the limitless potential of man and machine. Learn more about our expansive product portfolio for the most demanding industry applications.

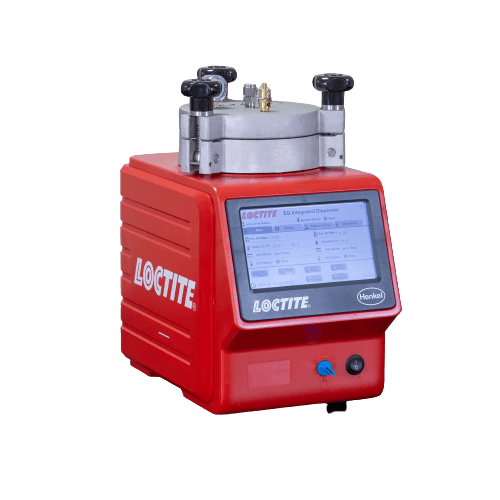

EQ RC50 Integrated Dispenser Loctite i-4.0

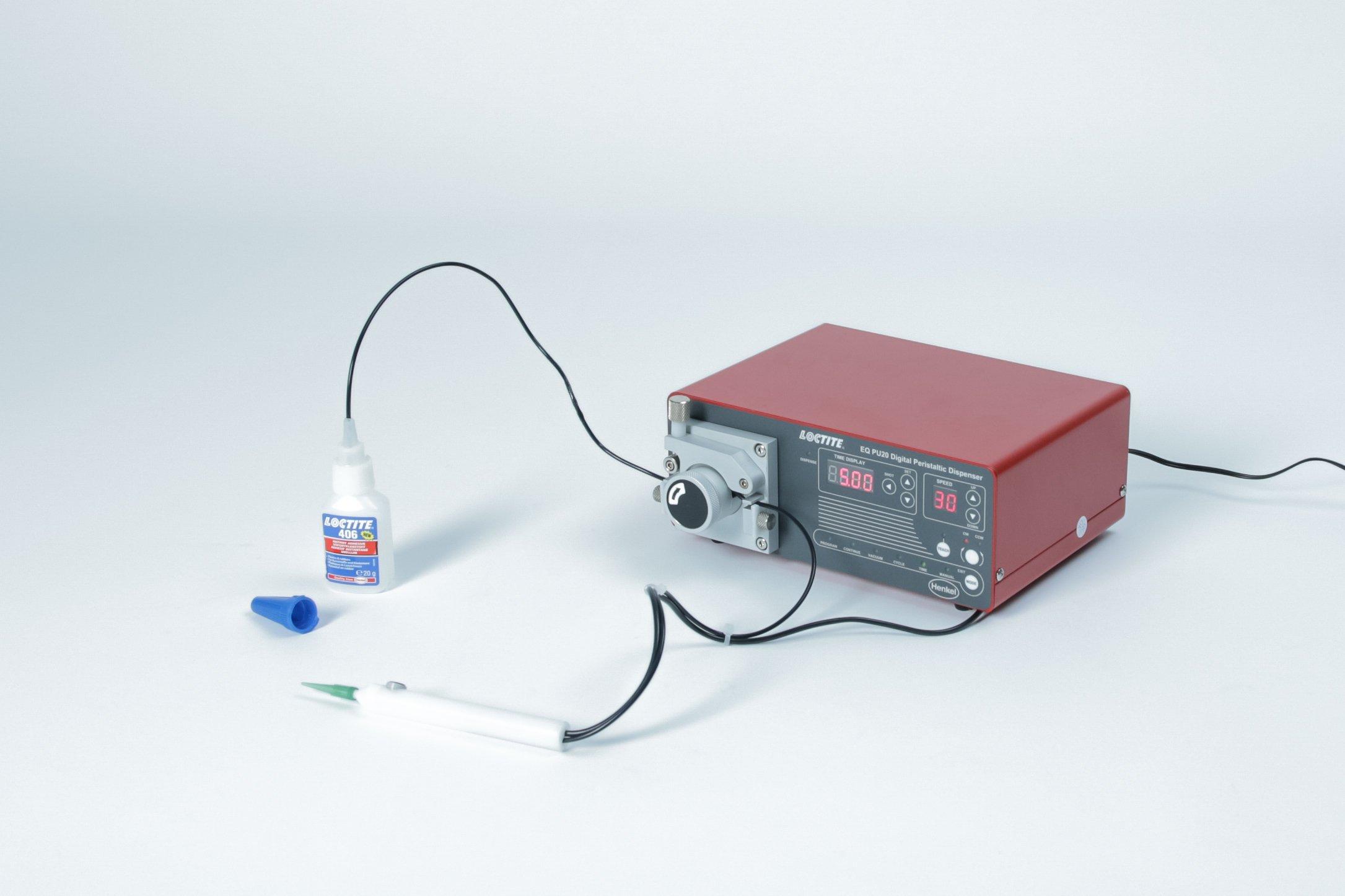

Pompe péristaltique numérique LOCTITE EQ PU20

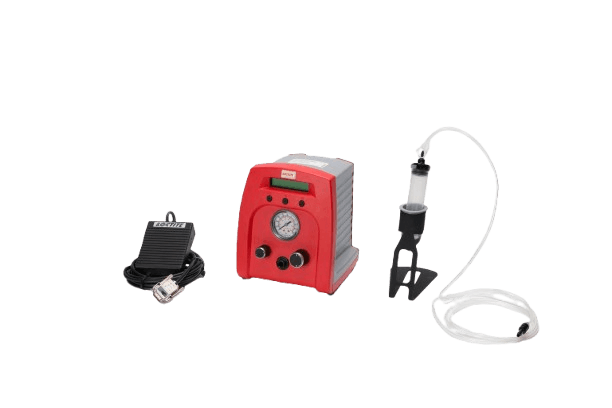

Système de dosage universel à seringue LOCTITE 98666

Loctite

Precise gluing application with igus room gantry

Präzises Kleben mit igus Raumportal Roboter

Customer Tests

Testen door klanten

Müşteri Testleri

客户测试

Tes Pelanggan

Testes de clientes

Testy klienta

การทดสอบของลูกค้า

客戶測試

Kundentests

Test dei clienti

customer-tests

Tests clients

Gluing

Kleben

接着

膠合

Klejenie

涂胶

접착

Lijmen

gluing

Collage

Dispensing

點膠

Dispensieren

分发

분배/디스펜서

ディスペンサー

dispensing

Distributeur

In the igus robot control, users can simulate, program, and control their custom igus robots. This free software provides an easy entry into low-cost automation. Various robot kinematics, such as articulated arm robots, delta robots, or linear robots, can be programmed and controlled. A digital twin simulates the movements, allowing users to program the appropriate solution before making a purchase. igus robot hardware starts at €5,000 and includes options like linear robots with integrated control in the control cabinet.Within the igus robot control, users can freely move all axes of the digital twin using a 3D interface. The teach-in function allows easy programming even without a robot connection. Users manually position the robot and define how it should move. Compatible end effectors, such as grippers, can be added easily, with the tool center point adjusting automatically. The software enables risk-free testing and is a great solution for automation tasks in the igus CTA.

Produktion

Manufacturing

製造業

Fabricação

Productie

Produkcja

การผลิต

制造业

Üretim

제조

Produzione

manufacturing

Production

Automated dispensing simulation with igus cobot

Automatisiertes Dispensieren mit igus Cobot

Superlowcost

Süper düşük maliyetli

Superlage kosten

Superniskikoszt

超低成本

Super low cost

ซุปเปอร์โลว์คอส

Custo superbaixo

초저가

经济型

superlowcost

Coût très faible

Adhesive and dispensing processes are complex operations that, when performed by humans, have a significant potential for error. This is due to the precision and consistency these processes require - attributes that are difficult to achieve when performed manually. Moreover, direct contact with the materials and substances used in these processes can lead to health issues, including skin irritations and allergic reactions.

In our most recent customer test, we demonstrated how these processes can be automated efficiently and cost-effectively. Through automation, companies can not only improve the quality and consistency of their products but also ensure the health and safety of their employees.To illustrate the automation, we simulated the process using a pen on the original component.

This served to demonstrate the accuracy and precision of the automated system. It showed how the system is capable of performing the same task over and over again with the same level of accuracy - an ability that is difficult to achieve when performed manually. This test served as compelling evidence of the benefits of automating adhesive and dispensing processes.

Laboratory

Laboratório

Labor

Laboratorio

Laboratorium

試験施設

Laboratuvar

实验室

實驗室

연구소

ห้องปฏิบัติการ

laboratory

Laboratoire

Automotive

Automoción

汽車產業

자동차 산업

汽车工业

Przemysł motoryzacyjny

自動車

automotive

Automobile

Precise bonding and sealing with igus room portal

The modular dispensing system with integrated igus room gantry offers an innovative solution for the precise and efficient dispensing of adhesives and sealants in prototype and series production. The use of zero-point clamping systems and measuring systems enables simple replacement of dispensing valves, tools or devices, which guarantees a high level of process reliability from batch size 1. In addition to 1-component materials from cartridges, hobbocks and drums, 2-component materials can also be applied with the right valve technology. The optional needle measurement for the automated input of offset values ensures consistent precision even after the cartridge change.

Handling and joining tasks can be programmed via the Igus Robot Control (IRC), whereby the DXF import represents an even simpler way of quickly implementing complex 2D contours in a dispensing programme in the future. An integrated weighing cell controls the dispensing process and ensures the defined adhesive quantity, thereby reducing waste and guaranteeing a consistently high quality of the dispensing process. The recurring, precise material application ensures the high quality of the dispensing process, minimising rework. Defined material application in the right place ensures sustainability through economical material consumption and reduces material waste.

This modular dispensing system revolutionises critical dispensing tasks and offers a flexible, efficient and cost-effective solution for production.

Automation of a potting process with the igus robot control software

The automated potting system for electronic assemblies from Simprop electronic Walter Claas GmbH & Co. KG uses a two-component polyurethane potting compound that completely encapsulates the electronics and protects them from dust and moisture. The system consists of a tank wagon for storing, tempering and vacuuming the components as well as a dosing head that dispenses the components in the correct mixing ratio into a static mixing tube. The potting compound runs into the housing of the assembly at the outlet of the mixing tube.

Automation has significantly reduced the manual activities at the workstation. The operators now only have to set and remove the workpiece carriers, top up the potting compound and hardener and carry out ancillary tasks at the start and end of work. This has resulted in a saving of around 60 % of working time. The sensory monitoring of the process and the PC-supported step-by-step instructions have reduced the number of operating errors to zero. The integrated production data acquisition logs the entire process and helps to identify maintenance requirements and further optimisation opportunities.

Gantry robot for gluing corrugated crests together

The XYZ hotmelt bonding table is an advanced solution designed to overcome the challenges of manual hotmelt bonding processes. Previously, the bonding process involved a significant amount of manual labour that had to be performed by people. As a result, the quality of the gluing samples depended heavily on the individual operator.

However, significant improvements have been achieved by automating the gluing process. Production output has doubled as the machine works continuously and efficiently. At the same time, the quality of the gluing patterns is now guaranteed as the automation eliminates the variability caused by human operation. Another advantage of automation is the reduced adhesive consumption, which leads to considerable cost savings.

The well-being of the operators has also improved. They no longer have to use manual hand guns, which reduces physical strain. In addition, the machine's user-friendly communication interface offers simple and intuitive operation. Another plus point is the machine's flexibility: the gluing patterns can be easily reprogrammed for future projects, ensuring a high level of customisation.

Packaging

包装機械

包装业

Verpakkingsindustrie

包裝業

Przemysł pakujący

포장 산업

Empaquetado y embalaje

Verpackung

packaging

Emballage

Automated gluing with a robot

Colagem automatizada com um robô

Automatisches Kleben mit einem Roboter

使用機器人自動膠合

自动涂胶机器人

Incollaggio automatizzato con un robot

Automatisch lijmen met een robot

The room gantry from igus with a 3-axis system is optimally suited for straight and linear movements without a lot of rotational work, fast and precise movements, and also for spot metering. The metering technology for the space gantry from Loctite consists of a digital syringe metering unit. This device can be used to dispense very universal glues as well as other liquids such as grease or oils. Compared to the room gantry, the igus ReBeL has the advantage that the cobot can also perform rotational movements and thus travels around components and scans more complex structures. The ReBeL with 6 degrees of freedom offers you the possibility to approach components even more flexibly. The latest compact dosing device is used for the ReBeL. This dispenser has a product tank where a wide variety of adhesives are dispensed in a pressure-time process. Finally, we will present a complete system consisting of a RoboCube, the Scara robot from igus, the associated control system and the metering unit from Loctite. The Scara robot makes it possible to manually show the robot the position where the robot is to travel. Similar to the room gantry, the Scara robot is suitable for linear movements and spot application. The Scara robot shortens the execution time and offers with this application a complete system with which your production can be made more flexible. Using a peristaltic pump as a metering device, thin-bodied adhesives can be metered very precisely volumetrically via a hose wall system. Through our free RBTXpert consulting service, you can contact us at any time and we will look together for an ideal solution for your application.

RBTX Automated Gluing Configurator

Automatisiert kleben und dosieren – jetzt Roboter konfigurieren

Configurador de colagem automatizado RBTX

Configuratore di incollaggio automatizzato RBTX

RBTX geautomatiseerde lijmconfigurator

RBTX自动定量涂胶系统配置器

RBTX 上膠配置器

Automated gluing systems from RBTX are highly flexible and offer rapid ROI. Components from a wide range of industry leaders are available to be mixed and matched to create the perfect solution for your application.

Use the advantages of an automated glue dispensing robot:

Precise dispensing with gantry robot

Präzise dispensieren mit Raumportal

龙门机器人用于精确点胶

Nauwkeurig doseren met portaalrobot

龍門式機器人精確點膠

In this customer test, an igus room gantry performs a dispensing task. Small drops must be sprayed onto the surface in a certain pattern. With the help of a syringe dosing system attached to the gantry, the customer's requirements could be realized.

Gantry robots consist of several linear axes that enable multidimensional movements and can be used in diverse areas. Portals are also compatible with a wide variety of end effectors, camera systems and accessories. Programming is also easy with the free igus Robot Control.
